ANA12

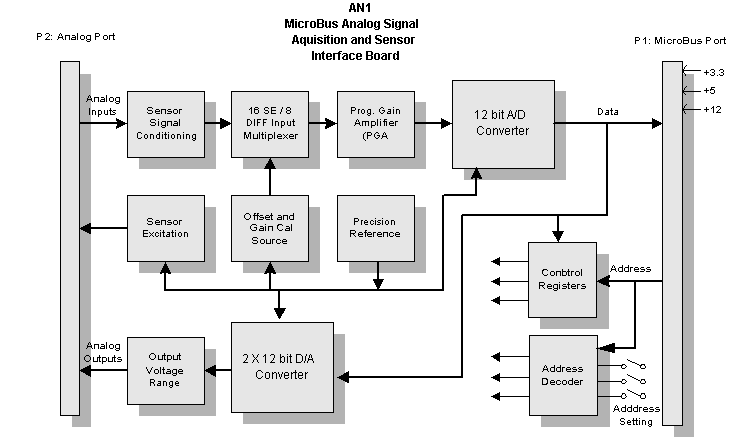

MicroBus ANA12 is a data acquisition and sensor interface board designed for embedded systems. ANA12 is a 12 bit system designed for higher speed acquisition applications requiring 12 bits of resolution and up to 50K Samples per second conversion rate. A 12 bit A/D converter with a precision reference is preceded by a 16 channel single ended or 8 channel differential multiplexer, and a programmable gain amplifier to accommodate a wide range of signal levels and types.

Sensor Interfaces and cold reference junction are provided for thermocouples. Excitation circuitry for Platinum Resistive Temperature sensors (PTD) and bridge excitation for pressure and force sensors is provided. Two 12 bit D/A converters provide analog outputs.

Conversion speed of ANA12 is 20uS for a speed of 50K conversions per second.

ANA Version

A/D

Inputs

DAC

Accuracy

ANA12

12 Bits

50 KSa/S

16 Single ended

8 Differential

2 Ch,

12 bits

0.1%

ANA20

20 Bits

100 Sa/S

16 Single ended

8 Differential

2 Ch,

12 bits

.02%

Key Benefits

bulletBenefit 1
bulletBenefit 2
bulletBenefit 3

Pricing

Description SKU # Price
option 1 sku-1 $100
option 2 sku-2 $200
option 3 sku-3 $300
